Detailed Description

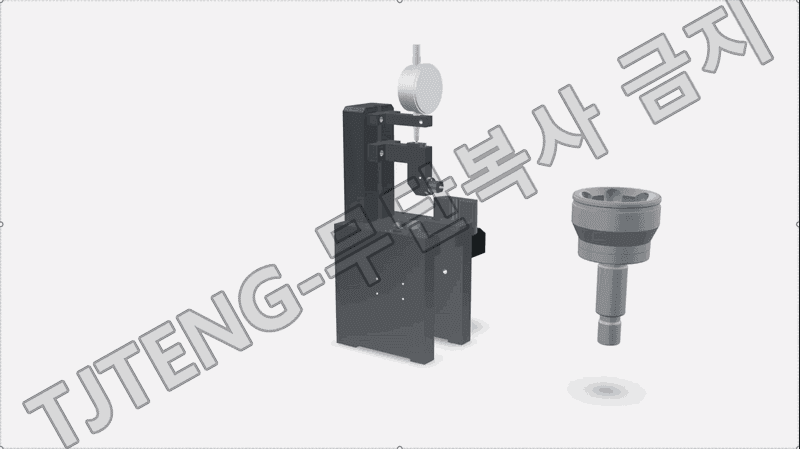

The (Outer Race) R-Shape Gauge is a comparative measurement jig that quickly and repeatedly verifies the R-shape (round/fillet curvature) of the outer race.
Using a dedicated master, the gauge is zeroed. The outer race to be measured is then secured and secured to the jig. A dedicated contact (probe/ball/pin) is then placed in contact with the R-shape section to read the gauge displacement (deviation), resulting in a pass/fail or relative deviation judgment.
This product applies the latest technology to provide high precision and reliability. It delivers stable performance even under demanding measurement conditions required in industrial environments, and features a user-friendly interface that anyone can easily use.
Key Features
- This comparative measurement method, based on a sample master (good or approved), facilitates on-site assessment of difficult-to-confirm absolute values, such as for curved sections.
- A dedicated mounting pocket/guide structure maintains the outer race position consistently, ensuring repeatability.
- A dedicated contactor (shape-compatible tip/probe) for the curved section allows for direct inspection of the target curvature area, quickly identifying under/over-curved areas.
- The gauge's top stand structure facilitates contact position and measurement depth settings, reducing setup time and improving workability.
- Basic tolerance standard (negotiable): ±0.003 mm
| Delivery Schedule | 3 months from order. |
|---|
